The KiCad Logo KiCad is a powerful open-source PCB-layout software suite which I prefer over Eagle (despite using Eagle for over a decade). I'm using KiCad now for over a year on a Lubuntu system where the installation is just a easy as typing apt-get install kicad.
On Mac OS X 10.10 Yosemite a fair amount of work has to be done to have KiCad installed with all its modules and libraries.

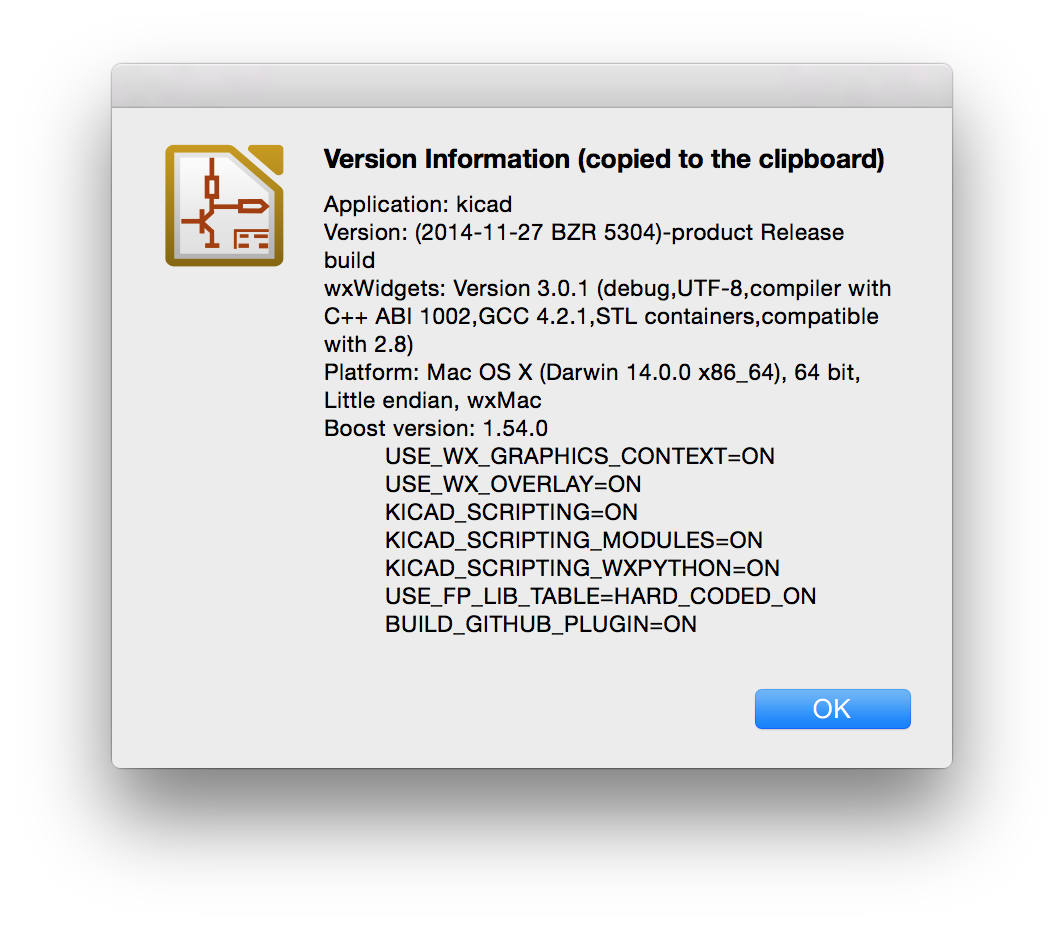

I've been searching quiet a while, until I found this nicely built version bzr 5304 (2014-11-27) by electropi with all the bells and whistles enabled: bzr 5304 electropi

Download and install the app, check if all the modules work and then quit KiCad.

Download schematic libraries from GitHub

cd ~/Library/Application Support/kicad

wget -o



Get KiCad repo-tools from EEVBlog for downloading the footprint libraries

cd ~/Library/Application Support/kicad

wget -o;attach=80613



These repo-tools are for Linux so we have to modify them for the use on Mac OS.


The correct paths are:

templatedir = '~/Library/Application Support/kicad/template’
localdir = '~/Library/Application Support/kicad/github-repo'

Clone and install the footprints


This may take a while. Afterwords move the fp-lib-table file to the Mac OS specific preference folder.

mv ~/fp-lib-table ~/Library/Preferences/kicad

Set the footprint path using the LaunchAgent

Create a plist file where the KISYSMOD environment-variable is set to the footprint path:

nano ~/Library/LaunchAgents/local.kicad.kisysmod.plist

Unfortunately the path has to be absolute. Please replace XXXXXXX with your username:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "">
<plist version="1.0">
    <string>/Users/XXXXXXX/Library/Application Support/kicad/github-repo</string>

Reload the Launch-Agent

cd ~/Library/LaunchAgents
launchctl unload local.kicad.kisysmod.plist
launchctl load local.kicad.kisysmod.plist

Start KiCad and enjoy all

Create a new project. Start Eeschema and add some Components.
Start Pcbnew. Select Preferences and Library tables and test if all the footprint-libraries show up. Insert one component.
